In the challenging working condition of mining vibrating screens, the equipment is subjected to huge impacts, continuous vibrations, and unavoidable installation deviations. As the core load-bearing component, the performance of bearings directly determines the operating life and efficiency of the screening machine.
Among various types of bearings, the 223 series spherical roller bearings have become a star solution for dealing with mining conditions due to their unique structural design.
Core advantages in dealing with mining conditions
Unlike ordinary cylindrical roller bearings, the 223 series spherical roller bearing has two winning strategies:

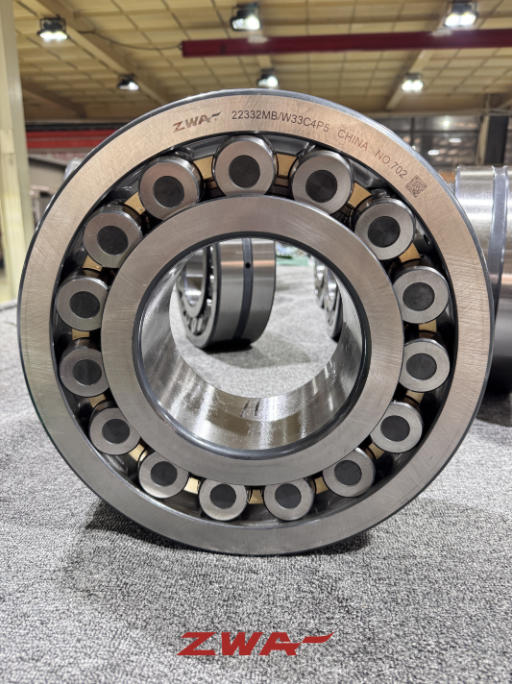

Excellent centering performance: Its raceway is spherical and the rollers are drum shaped, which enables the bearing to have automatic centering capability. During the long-term operation of the vibrating screen, the main shaft is inevitably subject to slight bending deformation or certain installation alignment errors. The 223 series bearings can effectively compensate for this deviation, avoiding early damage caused by stress concentration and greatly improving the reliability of equipment operation.
Strong radial and bidirectional axial bearing capacity: This bearing adopts two rows of symmetrical rollers, which not only has extremely high radial bearing capacity to withstand the weight of the screen box and materials, but also can withstand axial loads in two directions simultaneously. This means that under certain operating conditions, it can simplify the bearing seat structure without the need for additional thrust bearings, achieving "one bearing for multiple purposes" and providing greater flexibility for equipment design.
The 223 series is not an ordinary spherical roller bearing, it is a specially optimized version designed for vibration machinery (such as vibrating screens). The main strengthening measures include:
Increase radial clearance (C4 group): This is the golden rule for selecting vibration screen bearings. The 223 series standard provides C4 group large clearance, which reserves space for the thermal expansion of bearings caused by friction during high-speed operation, effectively preventing the problem of jamming caused by the disappearance of clearance due to temperature rise, and ensuring the smooth operation of bearings in a hot state.

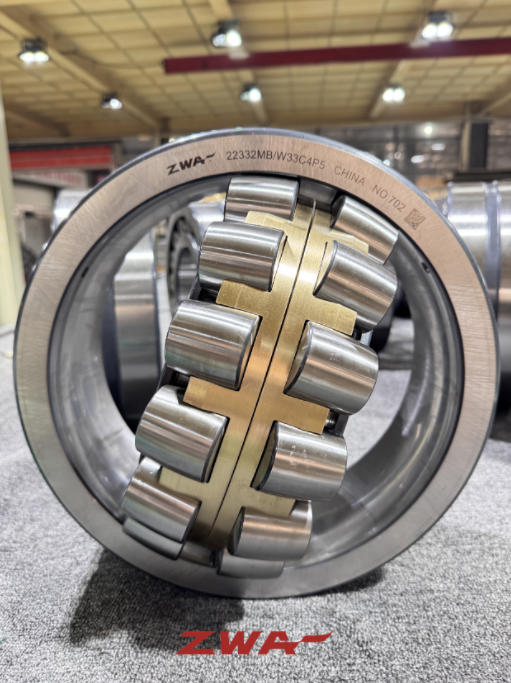

Sturdy retainer: Faced with high-frequency impacts and vibrations, the 223 series typically uses high-strength brass solid retainers or steel stamped retainers. This design ensures the structural integrity of the cage under harsh working conditions, reliably guiding and spacing the rollers to prevent chain failures caused by cage failure.
Upgrades in materials and processes: Through special heat treatment processes, bearing rings and rollers have both high surface hardness to resist wear and high core toughness to absorb impact energy, significantly extending fatigue life.
The 223 series spherical roller bearings, with their inherent self-aligning adaptability and strong comprehensive load-bearing capacity, perfectly meet the core requirements of "toughness, adaptability, and high load-bearing" for bearings in mining vibrating screens. Choosing it is choosing a strong and reliable 'heart' for the vibrating screen. Through proper selection, installation, and maintenance, the 223 series bearings will undoubtedly become a solid support for ensuring the continuous and efficient operation of mining production lines.
